MODEL : 800
08ZA3+1
TECHNICAL SPECIFICATIONS
Maximum lifting capacity - 800 Kg
Maximum lifting moment - 1 Ton.m
Recommended power - 2.5 KW
Hydraulic system - 8 L/Min
Hydraulic system pressure - 16 MPa
Tank capacity - 15 L
Installation space - 550 MM
Tank weight - 430 Kg
Rotation angle - 330 °
MODEL : 1600
1ZA3+1
TECHNICAL SPECIFICATIONS
Maximum lifting capacity - 1600 Kg
Maximum lifting moment - 2.2 Ton.m
Recommended power - 7.5 KW
Hydraulic system - 15 L/Min
Hydraulic system pressure - 18 MPa
Tank capacity - 25 L
Installation space - 550 MM
Tank weight - 550 Kg
Rotation angle - 330 °

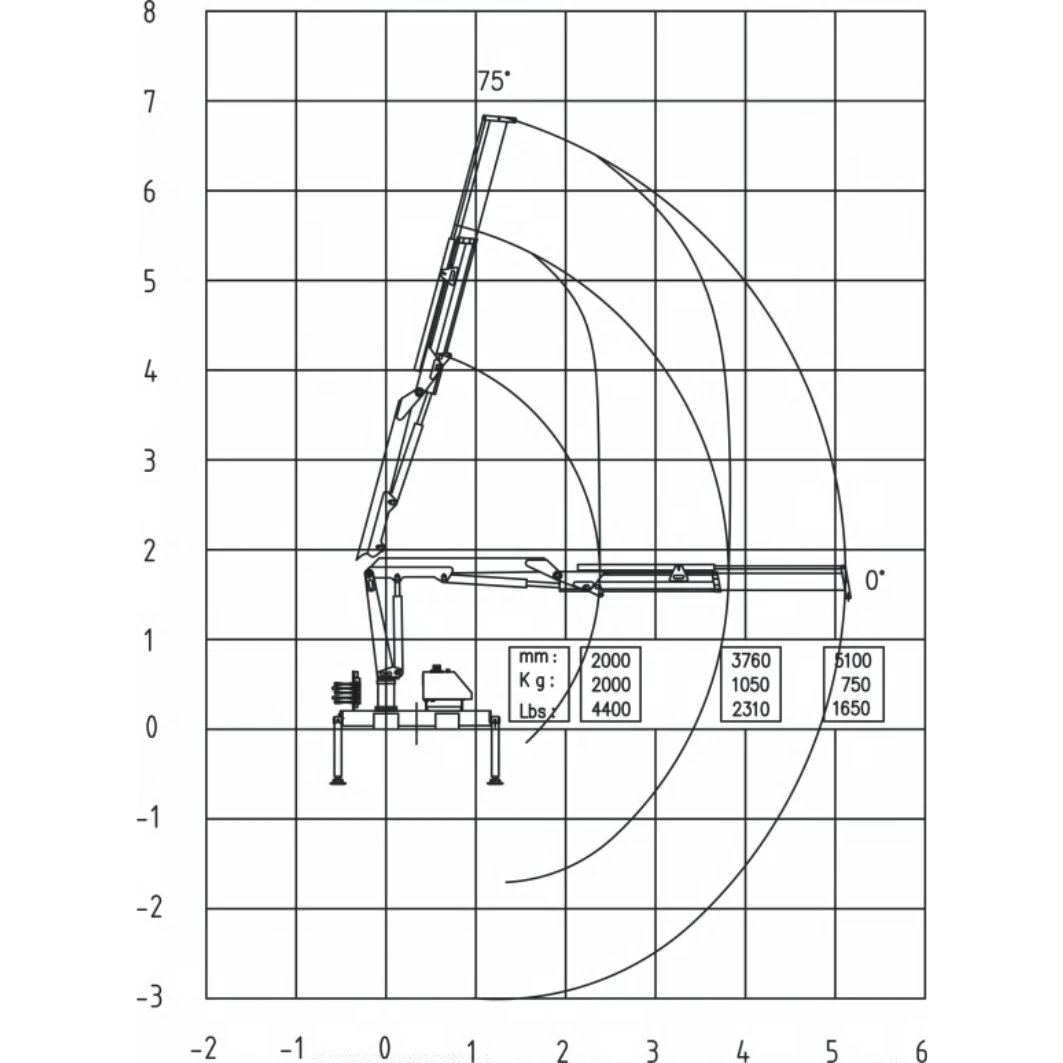

MODEL : 2000
2ZA2
TECHNICAL SPECIFICATIONS
Maximum lifting capacity - 2000 Kg
Maximum lifting moment - 4.2 Ton.m
Recommended power - 9 KW
Hydraulic system - 20 L/Min
Hydraulic system pressure - 20 MPa
Tank capacity - 25 L
Installation space - 680 MM
Tank weight - 780 Kg
Rotation angle - 370 °
MODEL : 2000 Z
2ZA4
TECHNICAL SPECIFICATIONS
Maximum lifting capacity - 2000 Kg
Maximum lifting moment - 4.2 Ton.m
Recommended power - 9 KW
Hydraulic system - 20 L/Min
Hydraulic system pressure - 20 MPa
Tank capacity - 25 L
Installation space - 680 MM
Tank weight - 850 Kg
Rotation angle - 370 °
MODEL : 3200
3.2ZA3
TECHNICAL SPECIFICATIONS
Maximum lifting capacity - 3200 Kg
Maximum lifting moment - 6.8 Ton.m
Recommended power - 14 KW
Hydraulic system - 25 L/Min
Hydraulic system pressure - 25 MPa
Tank capacity - 60 L
Installation space - 850 MM
Tank weight - 1285 Kg
Rotation angle - 400 °
MODEL : 3200 Z
3.2ZA4
TECHNICAL SPECIFICATIONS
Maximum lifting capacity - 3200Kg
Maximum lifting moment - 6.8 Ton.m
Recommended power - 14 KW
Hydraulic system - 25 L/Min
Hydraulic system pressure - 25 MPa
Tank capacity - 60 L
Installation space - 850 MM
Tank weight - 1380 Kg
Rotation angle - 400 °
MODEL : 4000
4ZA3
TECHNICAL SPECIFICATIONS
Maximum lifting capacity - 4000 Kg
Maximum lifting moment - 8.4 Ton.m
Recommended power -14 KW
Hydraulic system - 25 L/Min
Hydraulic system pressure - 26 MPa
Tank capacity - 60 L
Installation space - 850 MM
Tank weight - 1350 Kg
Rotation angle - 400 °
MODEL : 4000 Z
4ZA4
TECHNICAL SPECIFICATIONS
Maximum lifting capacity - 4000 Kg
Maximum lifting moment - 8.4 Ton.m
Recommended power - 14 KW
Hydraulic system - 25 L/Min
Hydraulic system pressure - 26 MPa
Tank capacity - 60 L
Installation space - 850 MM
Tank weight - 1450 Kg
Rotation angle - 400 °
MODEL : 5000
5ZA3
TECHNICAL SPECIFICATIONS
Maximum lifting capacity - 5000 Kg
Maximum lifting moment - 10.5 Ton.m
Recommended power - 22 KW
Hydraulic system - 35 L/Min
Hydraulic system pressure - 28 MPa
Tank capacity - 100 L
Installation space - 1050 MM
Tank weight - 2150 Kg
Rotation angle - 400 °
MODEL : 5000 Z
5ZA4
TECHNICAL SPECIFICATIONS
Maximum lifting capacity - 5000 Kg
Maximum lifting moment - 10.5 Ton.m
Recommended power - 22 KW
Hydraulic system - 35 L/Min
Hydraulic system pressure - 28 MPa
Tank capacity - 100 L
Installation space - 1050 MM
Tank weight - 2225 Kg
Rotation angle - 400 °
MODEL : 6300
6.3ZA3
TECHNICAL SPECIFICATIONS
Maximum lifting capacity - 6300 Kg
Maximum lifting moment - 13 Ton.m
Recommended power - 22 KW
Hydraulic system - 35 L/Min
Hydraulic system pressure - 28 MPa
Tank capacity - 100 L
Installation space - 1050 MM
Tank weight - 2200 Kg
Rotation angle - 400 °
MODEL : 6300 Z
6.3ZA4
TECHNICAL SPECIFICATIONS
Maximum lifting capacity - 6300 Kg
Maximum lifting moment - 13 Ton.m
Recommended power - 22 KW
Hydraulic system - 35 L/Min
Hydraulic system pressure - 28 MPa
Tank capacity - 100 L
Installation space - 1050 MM
Tank weight - 2275 Kg
Rotation angle - 400 °

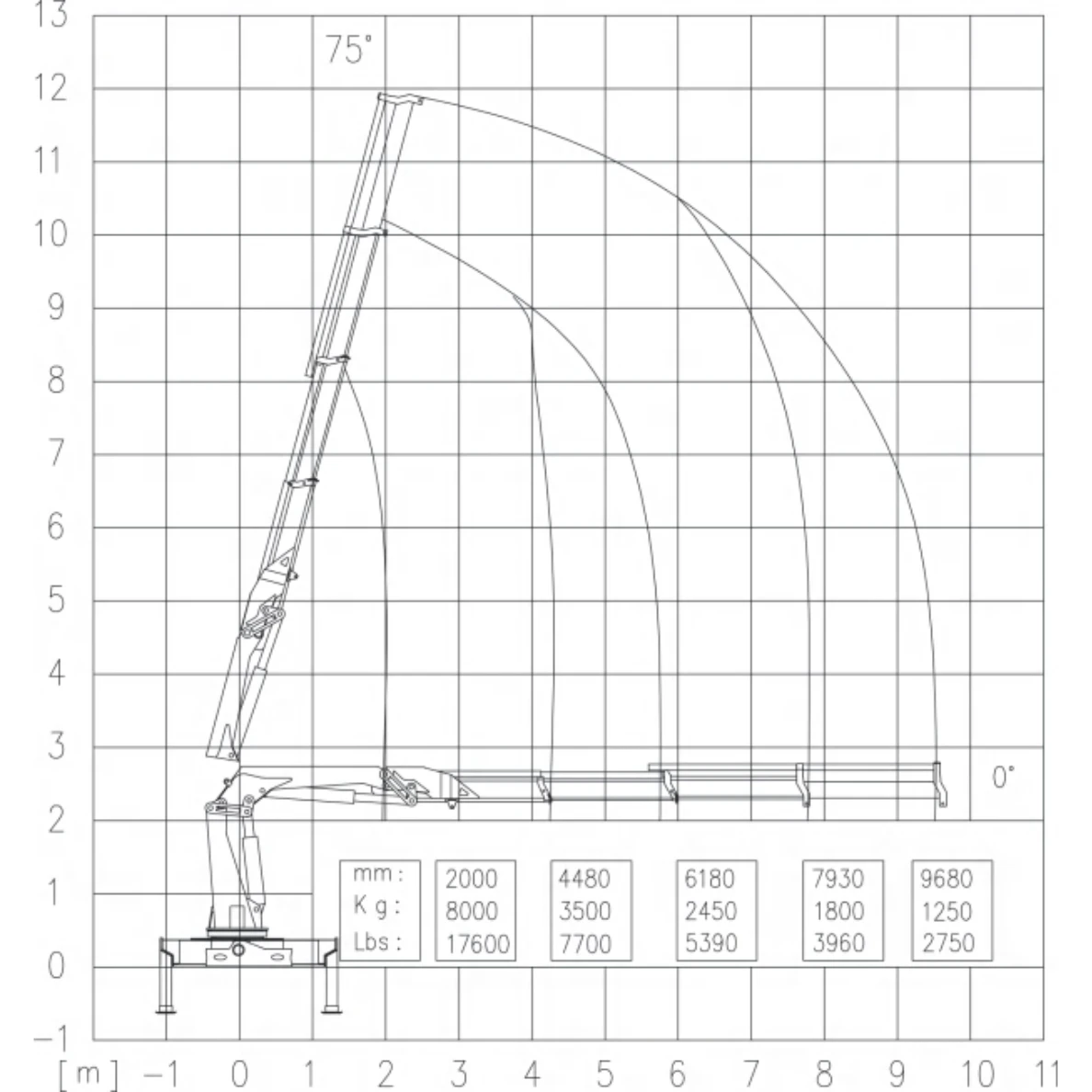

MODEL : 8000
8ZA4
TECHNICAL SPECIFICATIONS
Maximum lifting capacity - 8000 Kg
Maximum lifting moment - 16 Ton.m
Recommended power - 25 KW
Hydraulic system - 40 L/Min
Hydraulic system pressure - 28 MPa
Tank capacity - 160 L
Installation space - 1150 MM
Tank weight - 3050 Kg
Rotation angle - 360 °
MODEL : 10000
10ZA4
TECHNICAL SPECIFICATIONS
Maximum lifting capacity - 10000 Kg
Maximum lifting moment - 20 Ton.m
Recommended power - 25 KW
Hydraulic system - 40 L/Min
Hydraulic system pressure - 28 MPa
Tank capacity - 160 L
Installation space - 1200 MM
Tank weight - 3650 Kg
Rotation angle - 380 °
MODEL : 12000
12ZA4
TECHNICAL SPECIFICATIONS
Maximum lifting capacity - 12000 Kg
Maximum lifting moment - 27 Ton.m
Recommended power - 30 KW
Hydraulic system - 55 L/Min
Hydraulic system pressure - 28 MPa
Tank capacity - 160 L
Installation space - 1400 MM
Tank weight - 4600 Kg
Rotation angle - 360 °
MODEL : 16000
16ZA4
TECHNICAL SPECIFICATIONS
Maximum lifting capacity - 16000 Kg
Maximum lifting moment - 40 Ton.m
Recommended power - 37 KW
Hydraulic system - 63 L/Min
Hydraulic system pressure - 30 MPa
Tank capacity - 240 L
Installation space - 1500 MM
Tank weight - 5200 Kg
Rotation angle - 360 °
MODEL : 16000 Z
16ZA5
TECHNICAL SPECIFICATIONS
Maximum lifting capacity - 16000 Kg
Maximum lifting moment - 40 Ton.m
Recommended power - 37 KW
Hydraulic system - 63 L/Min
Hydraulic system pressure - 30 MPa
Tank capacity - 240 L
Installation space - 1500 MM
Tank weight - 5350 Kg
Rotation angle - 360 °
MODEL : 20000
20ZA6
TECHNICAL SPECIFICATIONS
Maximum lifting capacity - 20000 Kg
Maximum lifting moment - 46 Ton.m
Recommended power - 37 KW
Hydraulic system - 63 L/Min
Hydraulic system pressure - 30 MPa
Tank capacity - 260 L
Installation space - 1500 MM
Tank weight - 7500 Kg
Rotation angle - 360 °
MODEL : 25000
25ZA7
TECHNICAL SPECIFICATIONS
Maximum lifting capacity - 2500 Kg
Maximum lifting moment - 50 Ton.m
Recommended power - 50 KW
Hydraulic system - 80 L/Min
Hydraulic system pressure - 31.5 MPa
Tank capacity - 320 L
Installation space - 1500 MM
Tank weight - 7850 Kg
Rotation angle - 360 °
MODEL : 28000
28ZA7+1
TECHNICAL SPECIFICATIONS
Maximum lifting capacity - 28000 Kg
Maximum lifting moment - 56 Ton.m
Hydraulic system - 80 L/Min
Hydraulic system pressure - 30 MPa
Tail weight - 6300 Kg
Rotation angle - 360 °
MODEL : 34000
34ZA9+1
TECHNICAL SPECIFICATIONS
Maximum lifting capacity - 34000 Kg
Maximum lifting moment - 68 Ton.m
Hydraulic system - 80 L/Min
Hydraulic system pressure - 30 MPa
Tail weight - 7600 Kg
Rotation angle - 360 °
MODEL : 38000
38ZA7+1
TECHNICAL SPECIFICATIONS
Maximum lifting capacity - 38000 Kg
Maximum lifting moment - 76 Ton.m
Hydraulic system - 80 L/Min
Hydraulic system pressure - 30 MPa
Tail weight - 8200 Kg
Rotation angle - 360 °
MODEL : 44000
44ZA9+1
TECHNICAL SPECIFICATIONS
Maximum lifting capacity - 4400 Kg
Maximum lifting moment - 88 Ton.m
Hydraulic system - 80 L/Min
Hydraulic system pressure - 30 MPa
Tail weight - 8500 Kg
Rotation angle - 360 °
