MODEL : P4000
Z80-3
TECHNICAL SPECIFICATIONS
Maximum lifting capacity - 4000 Kg
Maximum lifting moment - 80 KN.m
Maximum reach - 6.25 m
Hydraulic system - 32 L/Min
Oil tank capacity - 60 L
Hydraulic system pressure - 20 MPa
Recommended power - 15 KW
Installation space - 715 MM
Rotation angle - 360 °
Tail weight - 1500 Kg
Outrigger reach - 3457 mm
Control - Ground operations
MODEL : P5000
Z100-5
TECHNICAL SPECIFICATIONS
Maximum lifting capacity - 5000 Kg
Maximum lifting moment - 100 KN.m
Maximum reach - 7.67 m
Hydraulic system - 50 L/Min
Oil tank capacity - 90 L
Hydraulic system pressure - 24 MPa
Recommended power - 20 KW
Installation space - 740 MM
Rotation angle - 360 °
Tail weight - 2800 Kg
Outrigger reach - 5010 mm
Control - Ground operations

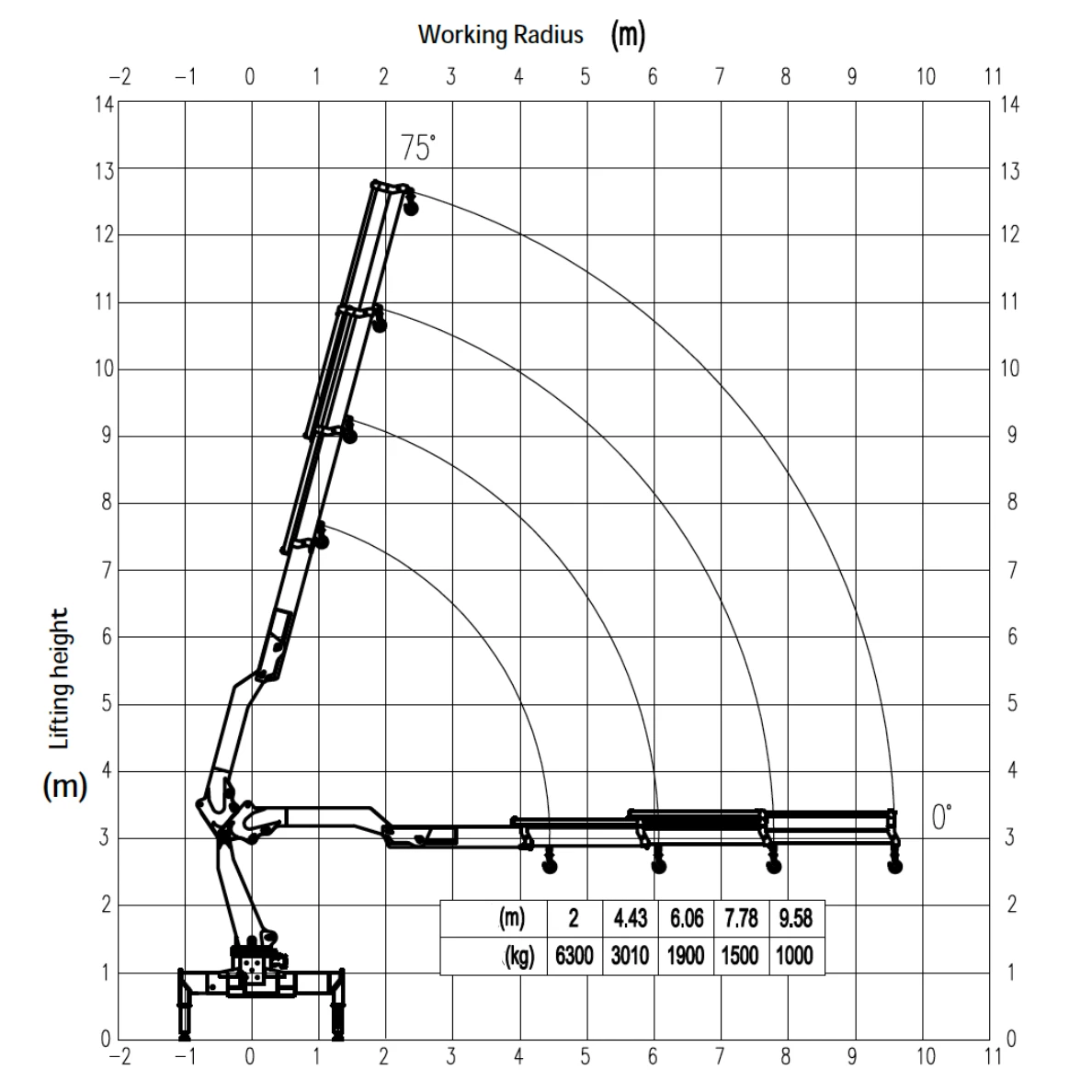

MOPDEL P6300
Z126-4
TECHNICAL SPECIFICATIONS
Maximum lifting capacity - 6300 Kg
Maximum lifting moment - 126 KN.m
Maximum reach - 9.58 m
Hydraulic system - 50 L/Min
Oil tank capacity - 90 L
Hydraulic system pressure - 24 MPa
Recommended power - 20 KW
Installation space - 740 MM
Rotation angle - 360 °
Tail weight - 3300 Kg
Outrigger reach - 5010 mm
Control - Ground operations
MODEL : P8000
Z160-4
TECHNICAL SPECIFICATIONS
Maximum lifting capacity - 8000 Kg
Maximum lifting moment - 160 KN.m
Maximum reach - 9.98 m
Hydraulic system - 45 L/Min
Oil tank capacity - 90 L
Hydraulic system pressure - 28 MPa
Recommended power - 20 KW
Installation space - 1000 MM
Rotation angle - 360 °
Tail weight - 3200 Kg
Outrigger reach - 5675 mm
Control - Ground operations
MODEL : P10000
Z200-4
TECHNICAL SPECIFICATIONS
Maximum lifting capacity - 10000 Kg
Maximum lifting moment - 200 KN.m
Maximum reach - 9.98 m
Hydraulic system - 45 L/Min
Oil tank capacity - 90 L
Hydraulic system pressure - 28 MPa
Recommended power - 20 KW
Installation space - 1000 MM
Rotation angle - 360 °
Tail weight - 3400 Kg
Outrigger reach - 5675 mm
Control - Ground operations / High seat operation
MODEL : P12000 Z
Z240-4
TECHNICAL SPECIFICATIONS
Maximum lifting capacity - 12000 Kg
Maximum lifting moment - 240 KN.m
Maximum reach - 11.5 m
Hydraulic system - 60 L/Min
Oil tank capacity - 90 L
Hydraulic system pressure - 30 MPa
Recommended power - 20 KW
Installation space - 1068 MM
Rotation angle - 360 °
Tail weight - 3600 Kg
Outrigger reach - 5870 mm
Control - Ground operations / High seat operation
MODEL : P16500
Z330-6
TECHNICAL SPECIFICATIONS
Maximum lifting capacity - 16500 Kg
Maximum lifting moment - 330 KN.m
Maximum reach - 13.7 m
Hydraulic system - 60 L/Min
Oil tank capacity - 90 L
Hydraulic system pressure - 30 MPa
Recommended power - 20 KW
Installation space - 1307 MM
Rotation angle - 360 °
Tail weight - 5200 Kg
Outrigger reach - 5855 mm
Control - Ground operations / High seat operation
MODEL : P20000
Z400-7
TECHNICAL SPECIFICATIONS
Maximum lifting capacity - 20000 Kg
Maximum lifting moment - 400 KN.m
Maximum reach - 15.9 m
Hydraulic system - 80 L/Min
Oil tank capacity - 90 L
Hydraulic system pressure - 30 MPa
Recommended power - 20 KW
Installation space - 1494 MM
Rotation angle - 360 °
Tail weight - 6200 Kg
Outrigger reach - 8011 mm
Control - Ground operations / High seat operation
